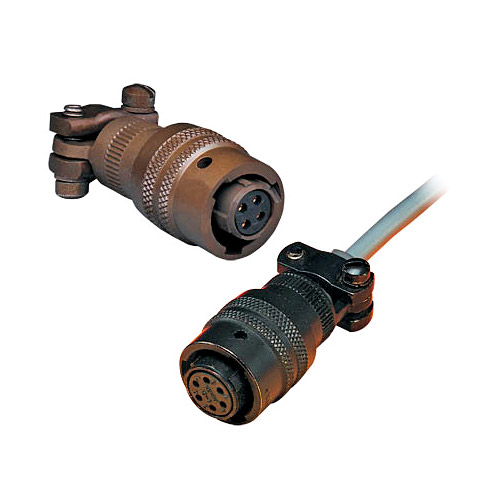

Česky (CZK)Twist Lock Connectors for Pressure Transducers and Load Cells
Rugged Aluminum Shells. Rated to 125°C. Strain Relief Cable Clamp. Secure Solder Contacts. #20 AWG Wire Size. High Conductivity Gold Plated Contacts. More
The OMEGA™ PT Series Connectors provide an efficient method of connecting pressure transducers to associated instrumentation with multi-conductor cable. The solder contacts are designed to provide positive connections for signal or power circuitry. The connectors come in a selection of operating temperature ranges to meet most industrial applications.
Connectors can now be purchased with either RoHS or MIL-C 26482G compliant finishes.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
