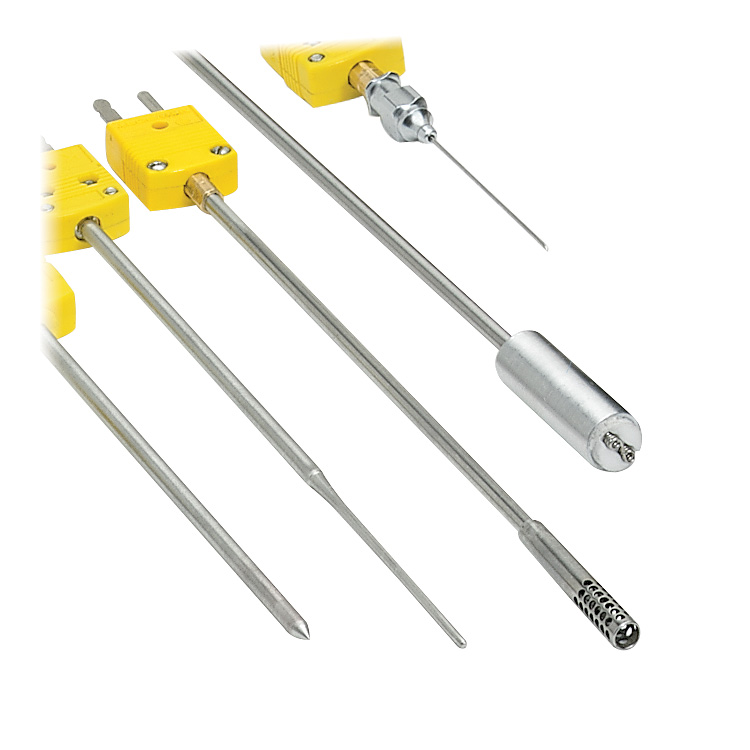

Quick Connect Thermocouple Probes with Utility Handle
Various Probe Styles Available and Sold Separately. J, K, T and E Calibrations Available. Fast Interchangeability. Made from Special Limits of Error Material. 0.3 m Retractable Cable Stretches to 1.5 m. Penetration and Surface Measurement Styles Available. Easy to Use Quick Change Handle Design with Retractable Cord. More
Item# (PN): HYP-5 Shipping and Payment
Type | Model | Description |
A | HYP5 Series | Hypodermic probe intended to be used for laboratory, industrial and natural science uses. Tip rated to 200°C |
B | SMP-NP | Penetration probe conical tip designed for penetration into semi-frozen objects. Tip rated to 925°C; |
C | SMP-RT | Reduced tip fast response probe. 1/8 to 1/16 inch diameter at tip. Tip rated to 925°C |
D | SMP-AP | Air probe;drilled end exposes bead to air flow for fast measurements. Tip rated to 260°C |
E | (*)MQSS-125-G-6 | General purpose immersion probe. 1/8 inch diameter, 304SS Tip rated to 260°C |
F | SMP-HT Series | Ceramic tip probe feature as spring loaded thermocouple to insure consistent readings, 304SS housing, 31.8mm long tip rated to 650°C |
G | 88000 Series | Quick-connect handle with integral locking mechanism secures any miniature probe handle in use. |
The standard length of type B to F is 15 cm, for type A it is 3.8 cm. Other lengths are available.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
